FUSE CUTOUTS

Reliable Primary Protection for Overhead Distribution Networks

At Integrated Power & Engineering, we supply high-performance Fuse Cutouts designed to provide dependable primary overcurrent protection in medium-voltage overhead distribution systems. These fuse cutouts play a critical role in protecting distribution transformers, overhead lines, and network equipment from overloads, short circuits, and fault conditions.

Built for safety, durability, and easy field operation, our fuse cutouts are trusted by utilities and project developers for consistent performance in both urban and rural environments.

What Our Fuse Cutouts Do

A fuse cutout is often the first line of defense in an overhead distribution network. When a fault occurs, it quickly isolates the affected section—preventing damage from spreading further and keeping the rest of the system energized.

Our fuse cutouts are designed to:

  • Disconnect faulted equipment safely and visibly
  • Limit damage to transformers and conductors
  • Reduce outage time and maintenance effort
  • Improve overall network reliability

Technical Specifications

Voltage Ratings

  • 11 kV / 15 kV / 22 kV / 33 kV

Current Ratings

  • Up to 200 A (standard)
  • Higher current ratings available on request

Interrupting Capacity

  • Up to 12.5 kA

Insulation Type

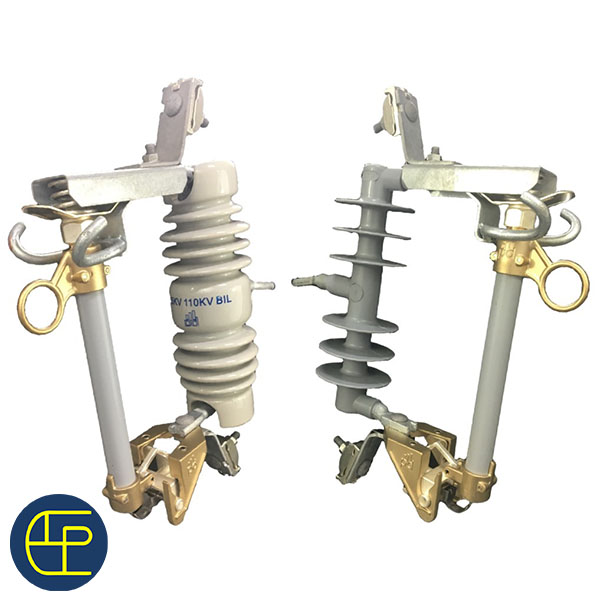

  • Porcelain – traditional, high mechanical strength

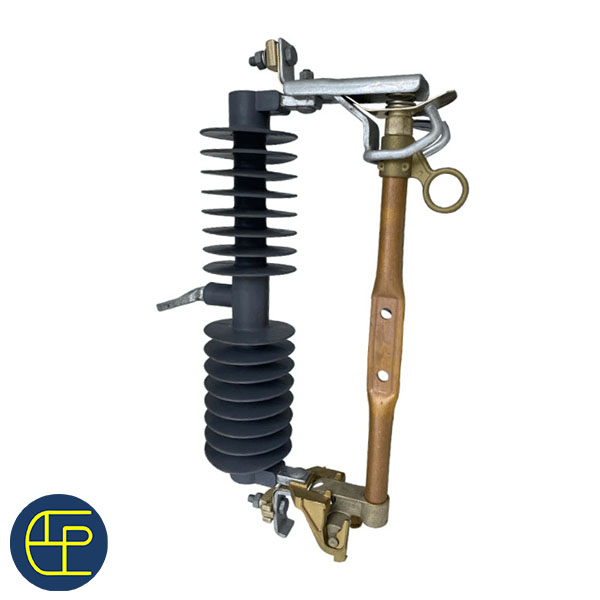

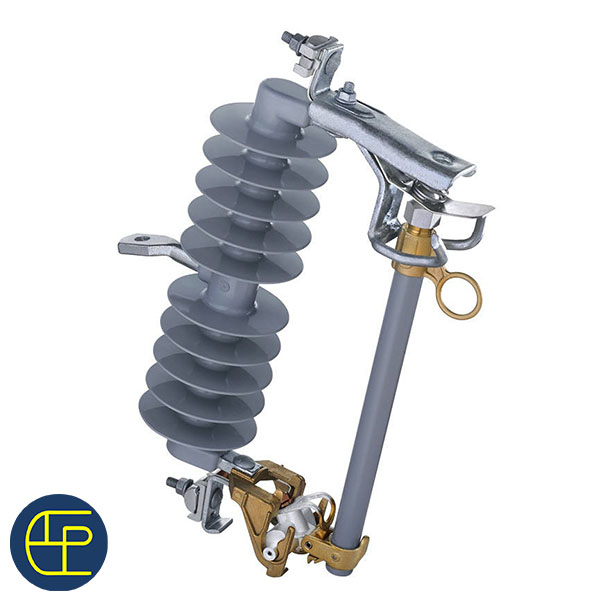

  • Polymer (Silicone Rubber) – lightweight, superior pollution and UV resistance

Mounting Arrangement

  • Pole-mounted
  • Compatible with cross-arm and bracket installations

Fuse Links

  • Compatible with standard expulsion fuse links

Standards & Compliance

  • IEC 60282-2
  • ANSI C37.41
  • IS 9385

Key Features & Practical Benefits

Reliable Fault Isolation

Automatically disconnects faulted sections to protect transformers and overhead lines—helping utilities minimize equipment damage and service disruption.

Strong Insulation for Outdoor Use

Available in porcelain or polymer housings, both designed to withstand rain, heat, UV exposure, and pollution common in outdoor installations.

Easy Field Maintenance

Fuse links can be replaced safely on-site without dismantling the cutout, allowing quick restoration of service and reduced manpower effort.

Corrosion-Resistant Construction

All metallic components are hot-dip galvanized or stainless steel, ensuring long service life even in coastal, industrial, or high-humidity areas.

Effective Current Limiting

Helps restrict fault current and ensures that only the affected section of the line is isolated—keeping the rest of the network operational.

Compact & Installer-Friendly Design

Lightweight and space-efficient, making installation straightforward on pole-top transformers and overhead lines.

Typical Applications

  • Pole-mounted distribution transformer protection
  • Rural and urban overhead distribution lines
  • Renewable energy grid connections (solar and wind)
  • Industrial estates and utility distribution networks
  • Substation outgoing feeder circuits

Why Choose Integrated Power & Engineering?

  • Proven quality tested to international safety and performance standards
  • Material flexibility with porcelain and polymer insulation options
  • Customized solutions for voltage rating, fuse link type, and mounting arrangement
  • Fast project support with ready availability and short lead times
  • Bangladesh-based engineering support for installation and maintenance assistance

For safe, dependable, and field-proven overhead line protection, choose Fuse Cutouts by Integrated Power & Engineering—designed to perform reliably in all weather and operating conditions.

What is the primary function of a fuse cutout in a distribution system? +
A fuse cutout provides primary overcurrent and short-circuit protection by automatically disconnecting faulty transformers or line sections, preventing damage to upstream equipment.
What voltage levels are supported by your fuse cutouts? +
Integrated Power & Engineering fuse cutouts are available for 11 kV, 15 kV, 22 kV, and 33 kV overhead distribution networks.
What is the maximum current rating of the fuse cutout? +
Standard models are rated up to 200 A, with higher current ratings available based on project requirements and fuse link selection.
What interrupting capacity do the fuse cutouts provide? +
Our fuse cutouts have an interrupting capacity of up to 12.5 kA, ensuring safe operation during high fault current conditions.
Which insulation materials are available and how do they differ? +
We offer porcelain insulation for high mechanical strength and polymer (silicone rubber) insulation for lighter weight, better pollution resistance, and improved performance in coastal or high-humidity areas.
Are the fuse cutouts compatible with standard expulsion fuse links? +
Yes, all our fuse cutouts are fully compatible with standard expulsion fuse links, making replacements simple and widely available.
Can the fuse link be replaced without removing the fuse cutout from the pole? +
Yes, the design allows safe and quick fuse link replacement in the field without dismantling the cutout body, reducing outage and maintenance time.
What mounting arrangements are supported? +
The fuse cutouts are pole-mounted and compatible with standard cross-arm and bracket installations, suitable for transformer and line protection.
How do the fuse cutouts perform in harsh outdoor environments? +
All metallic parts are hot-dip galvanized or stainless steel, providing excellent corrosion resistance and long service life in rain, heat, pollution, and coastal conditions.
