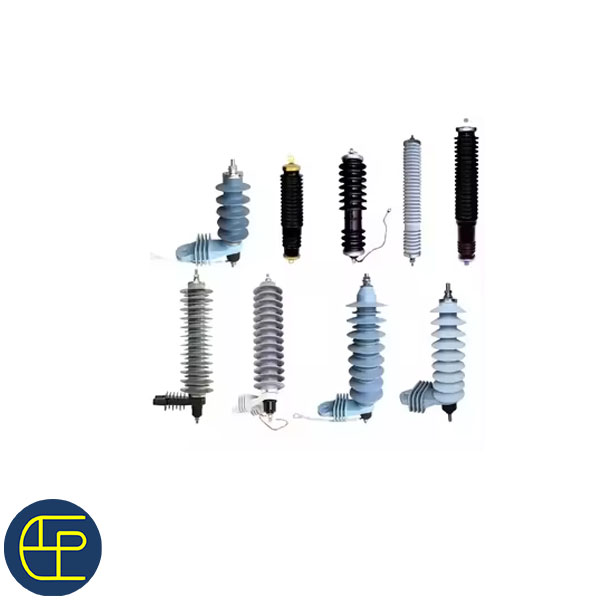

SURGE ARRESTOR

Advanced Overvoltage Protection Solutions by Integrated Power & Engineering

Integrated Power & Engineering manufactures and supplies high-performance surge arresters designed to protect electrical systems and equipment from lightning strikes, switching surges, and transient overvoltage’s. Engineered with advanced metal oxide technology and rugged construction, our surge arresters deliver fast response, long service life, and dependable protection across low, medium, high, and extra-high voltage networks.

Our solutions are suitable for residential, commercial, industrial, utility, renewable energy, and telecom applications, ensuring electrical safety and system continuity in all operating environments.

Product Overview: Reliable Overvoltage Protection

Surge arresters are critical protective devices that limit transient overvoltage’s by diverting surge energy safely to ground. Integrated Power & Engineering surge arresters are designed to:

  • Protect insulation systems of transformers, switchgear, cables, and equipment
  • Reduce risk of equipment failure and downtime
  • Ensure compliance with international electrical safety standards
  • Perform reliably under repeated surge events

Technical Specifications

Voltage Range

  • Low Voltage (LV)
  • Medium Voltage (MV)
  • High Voltage (HV)
  • Extra High Voltage (EHV)

Arrester Type

  • Station Class
  • Intermediate Class
  • Secondary / Distribution Class

Protection Class

  • Class I
  • Class II
  • Class III
    (As per IEC 61643-11)

Core Technology

  • Metal Oxide Varistor (MOV), gapless design

Installation

  • Indoor
  • Outdoor (UV, moisture, and pollution resistant)

Mounting Options

  • Pole-mounted
  • Panel-mounted
  • DIN rail-mounted

Standards Compliance

Manufactured in accordance with:

  • IEC 60099
  • IEEE C62.11
  • BS EN 61643

Construction & Design Features

MOV Block

  • High-energy absorption capability
  • Stable performance under repeated surge conditions

Housing

  • Polymer or porcelain construction
  • High mechanical strength and excellent weather resistance

Sealing System

  • Moisture-proof sealing for long-term outdoor reliability

Grounding Interface

  • Low-resistance path for effective surge diversion

Key Performance Advantages

Fast Response Time

Nanosecond-level response ensures immediate clamping of voltage surges before they reach sensitive equipment.

High Energy Handling

Designed to withstand multiple lightning and switching surges without degradation.

Long Service Life

Aging-resistant MOV blocks ensure consistent performance over extended operating periods.

Enhanced Safety

Optional thermal disconnector prevents catastrophic failure at end-of-life conditions.

Monitoring Capability

Available with visual indicators and optional remote signaling for condition monitoring.

Optional Accessories & Features

  • Visual failure indicator
  • Remote signaling contact
  • Thermal disconnection system
  • Status alarms
  • Online condition monitoring

Typical Applications

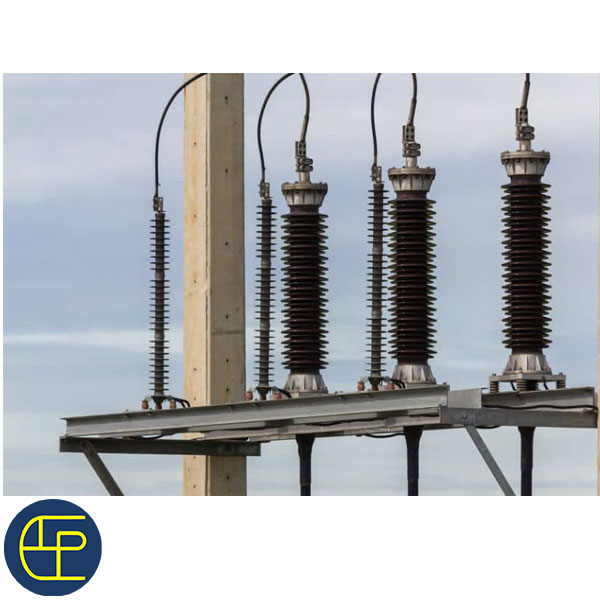

  • Power substations and transmission networks
  • Distribution transformers and feeder lines
  • Industrial plants and automation systems
  • Commercial buildings and electrical panels
  • Telecom towers and communication facilities
  • Solar PV plants and wind farms
  • Data centers and IT infrastructure
  • Residential buildings and housing complexes
  • Oil & gas, mining, and heavy industries

Why Choose Integrated Power & Engineering?

  • Comprehensive surge protection solutions from LV to EHV
  • Designs compliant with international IEC, IEEE, and BS standards
  • Custom voltage ratings and mounting configurations
  • Rugged designs for harsh environmental conditions
  • Local manufacturing, testing, and technical support in Bangladesh
  • Proven reliability across utility and industrial installations

Protect Your Assets. Ensure System Continuity.

Voltage surges can cause severe damage to electrical equipment, leading to costly repairs, downtime, and safety risks. Integrated Power & Engineering surge arresters provide reliable, field-proven protection—ensuring safety, efficiency, and long-term performance of your electrical infrastructure.

Secure your power. Protect your future.
Choose Surge Arresters by Integrated Power & Engineering.

What is the primary function of a surge arrester? +
A surge arrester protects electrical equipment by limiting transient overvoltage’s caused by lightning strikes or switching operations and safely diverting surge current to ground, preventing insulation failure and equipment damage.
How does a metal oxide surge arrester work? +
Metal oxide surge arresters use non-linear MOV blocks that remain highly resistive at normal operating voltage and become conductive during overvoltage conditions, clamping the voltage to a safe level within nanoseconds.
Where should surge arresters be installed for maximum protection? +
Surge arresters should be installed as close as possible to the equipment being protected, such as transformers, switchgear, cable terminations, or panel boards, with a low-impedance grounding connection.
What is the difference between station class, intermediate class, and distribution class arresters? +
Station class arresters are used in substations and EHV/HV systems, intermediate class arresters serve MV networks, and distribution (secondary) class arresters protect distribution transformers and low-voltage equipment.
How is the correct surge arrester voltage rating selected? +
The voltage rating is selected based on the system’s nominal voltage, maximum continuous operating voltage (MCOV), grounding method, and expected surge conditions to ensure reliable protection without nuisance operation.
Do surge arresters require regular maintenance? +
Modern gapless MOV surge arresters are generally maintenance-free. Periodic visual inspection and monitoring of indicators or remote signals (if provided) are recommended to ensure continued protection.
What happens when a surge arrester reaches end-of-life? +
At end-of-life, the arrester may activate a thermal disconnector or show a visual/remote alarm indication, allowing safe isolation and replacement without causing system faults or equipment damage.
Are surge arresters suitable for outdoor and harsh environments? +
Yes. Integrated Power & Engineering surge arresters are designed with weather-resistant polymer or porcelain housings, offering high performance in outdoor, polluted, coastal, and high-humidity environments.
